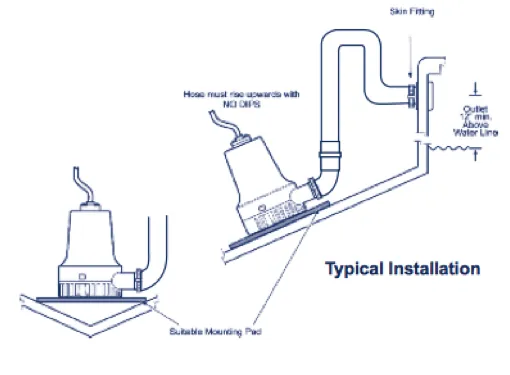

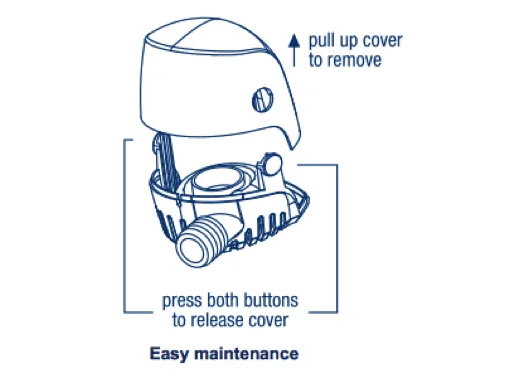

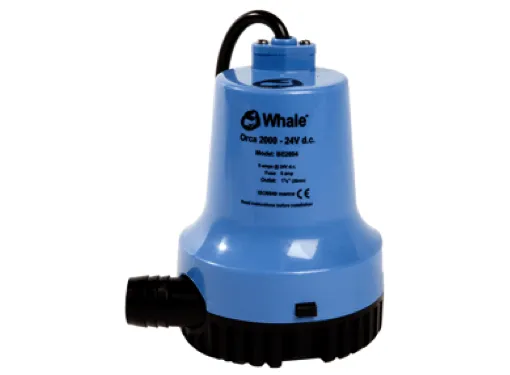

Whale Compact and powerful electric bilge pumps available in a range high performance capacities including 500 US GPH, 950 US GPH, 1300 US GPH, 2000 GPH and 3000 GPH versions. The Orca Range has a low footprint, compact design with large filter base to ensure maximum surface area coverage for removal of bilge water. This filter base is easily removed for maintenance and access to the motor cartridge and the long multiple wires allow for easy installation. Each Orca has a low amp draw meaning a longer battery life and low power consumption and the pump meet ISO8849 standards.
Techy Bits, Dimensions & Weights
- Open Flow Rate : 2000 US GPH (126 ltrs/min)
- Flow Rate @ 1 m Head : 1650 US GPH (104 litres/min)
- Nominal Voltage : 12 V DC
- Current Draw : 12V 10.0 Amps, 24V: 5.0 Amps
- Recommended Automotive Fuse: 12V 15.0 Amp, 24V 7.5 Amp
- Wire Size (Caulked Wire) : 1.5mm (16 AWG)
- Weight : 1.32 kg (2.9 lbs)
- Maximum Discharge Head : 4m (13ft)
- Hose Connectors : 11/8" (28mm)
- Materials : Pump Body: ABS, Impeller: Acetal , Seals: Nitrile
- Overall Height : 165mm (6.5")
- Overall Width : 144mm (5.7")
- Overall Length : 120.5mm (4.74")
Models
- Orca 2000 12v
- Orca 2000 24v
